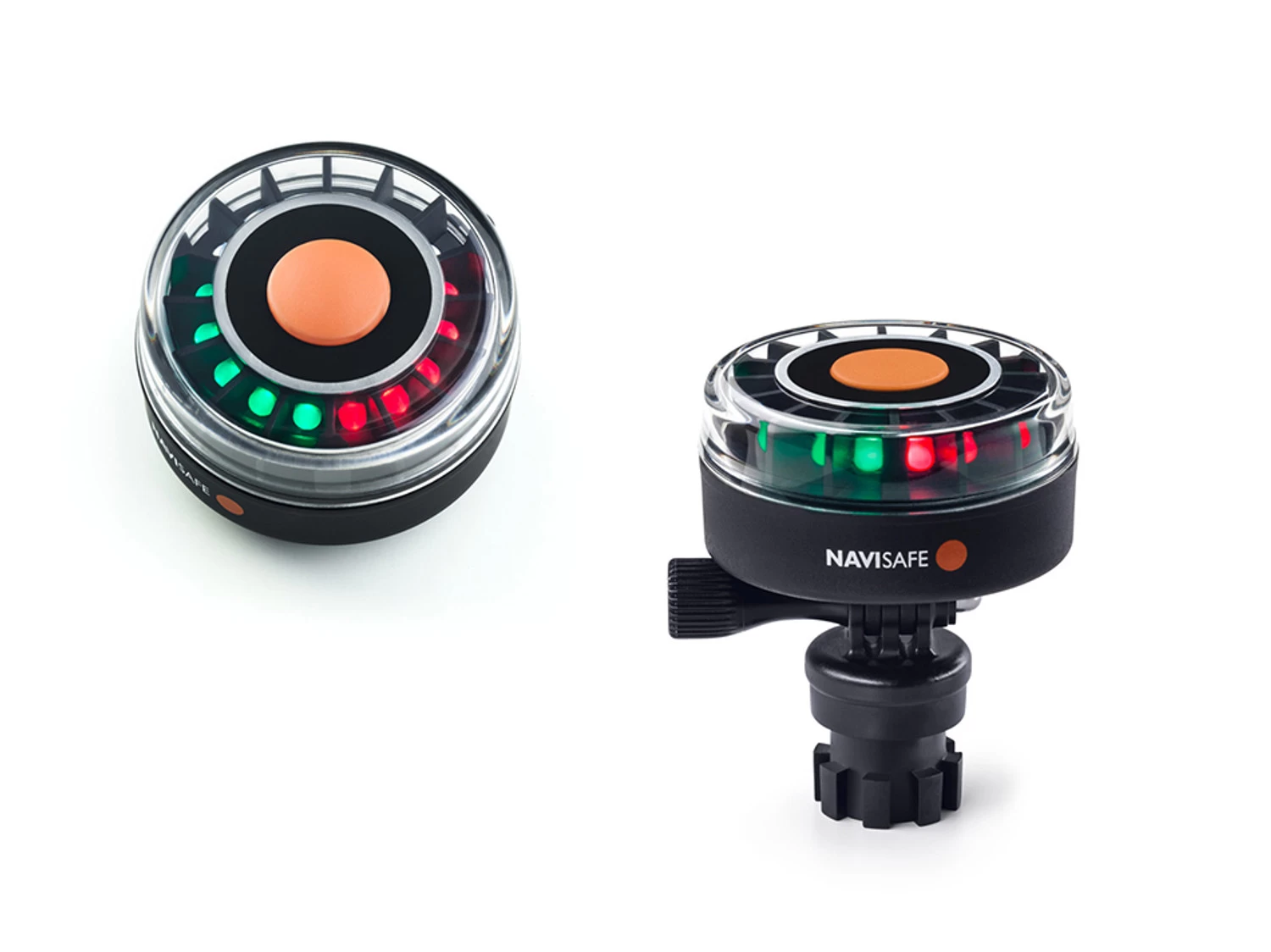

Navilight Tricolor 2NM (Navimount)

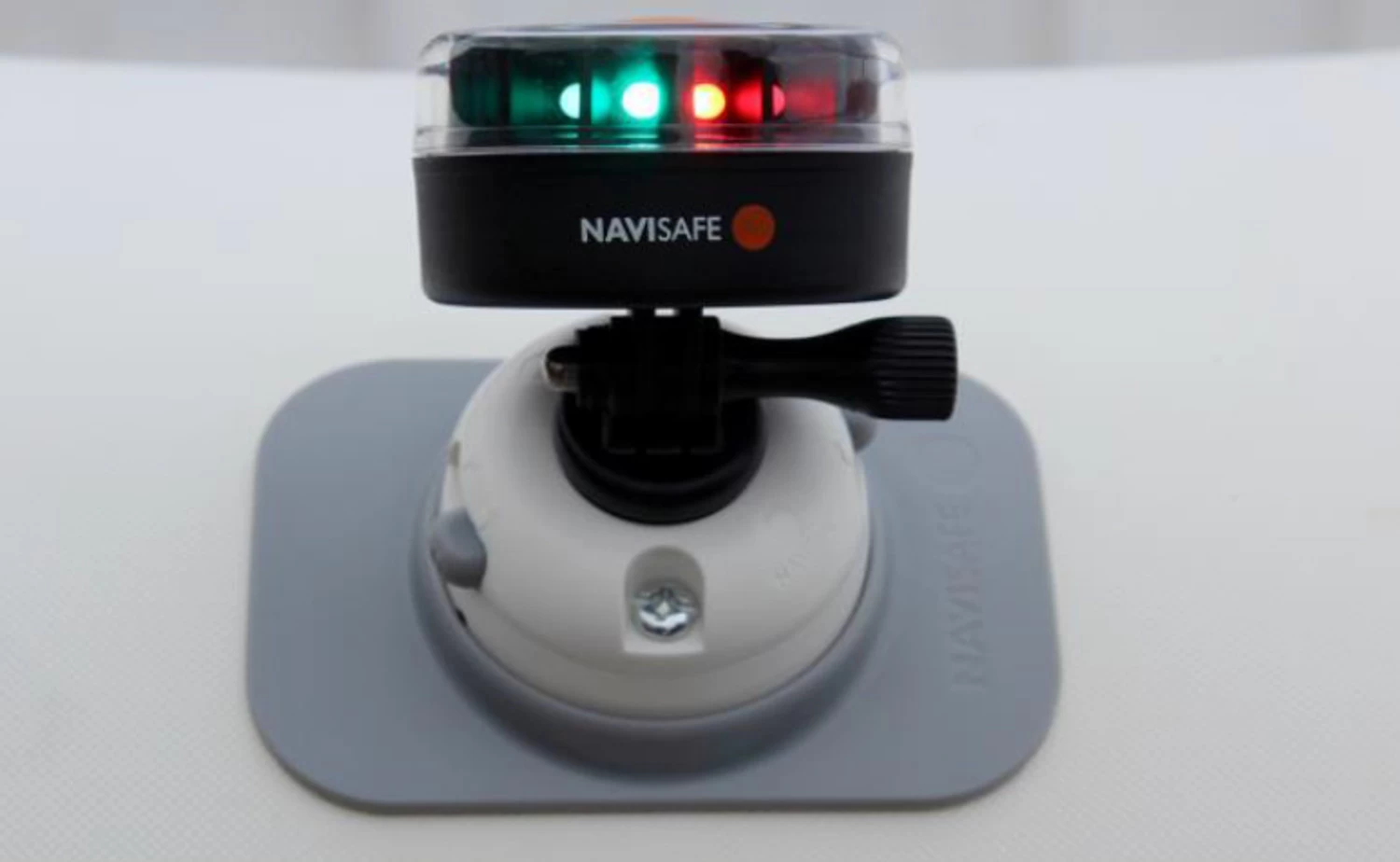

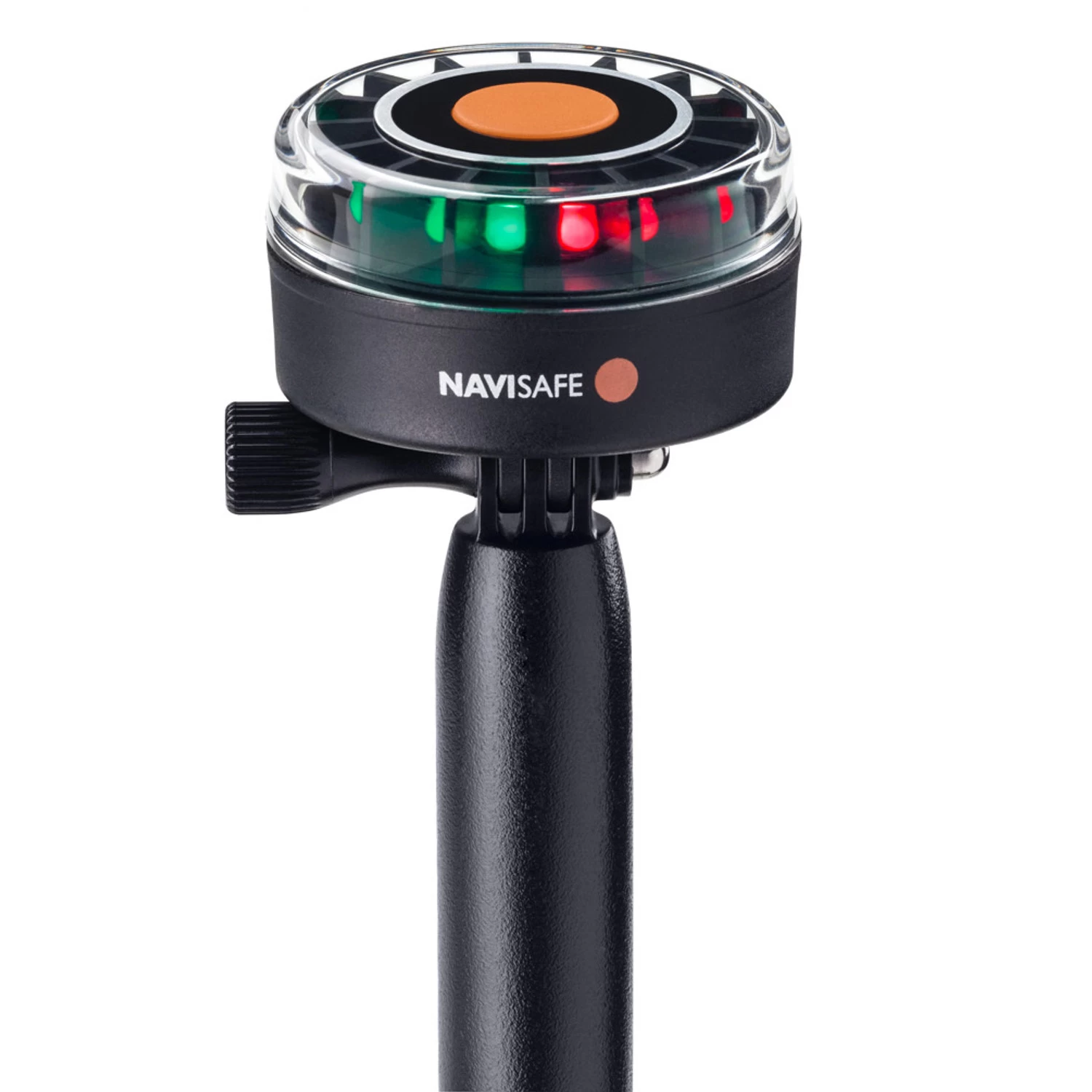

Portable Tricolor Navigation light with Navimount base, compatible with Navisafe’s Navimount system and many GoPro® / Action camera mounts. The Navilight Tricolor without the Navimount base can be mounted directly to the 4-piece-pole but also directly to all kind of GoPro® / Action camera mounts. The Navilight Tricolor together with the Navimount base can be mounted directly to all Navimount’s – for example to the Navimount RIB / 954 on the bow of an inflatable or to the Navimount Horizontal / 952 on the cabin roof.

Examples of use

*Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.

•  On a power-driven vessel of 12 meters or more in length but less than 50 meters in length:
• as green or red sidelight
• as sternlight
• On a power-driven vessel of less than 12 meters in length:
• as green or red sidelight
• as combined green / red
• as sternlight
• On a sailing vessel underway:
• as green or red sidelight
• as sternlight
• On a sailing vessel of less than 20 meters in lengths as backup light:
• TriColor lantern at or near the top of the mast

Specs

• USCG Approval, 2 Nautical Miles

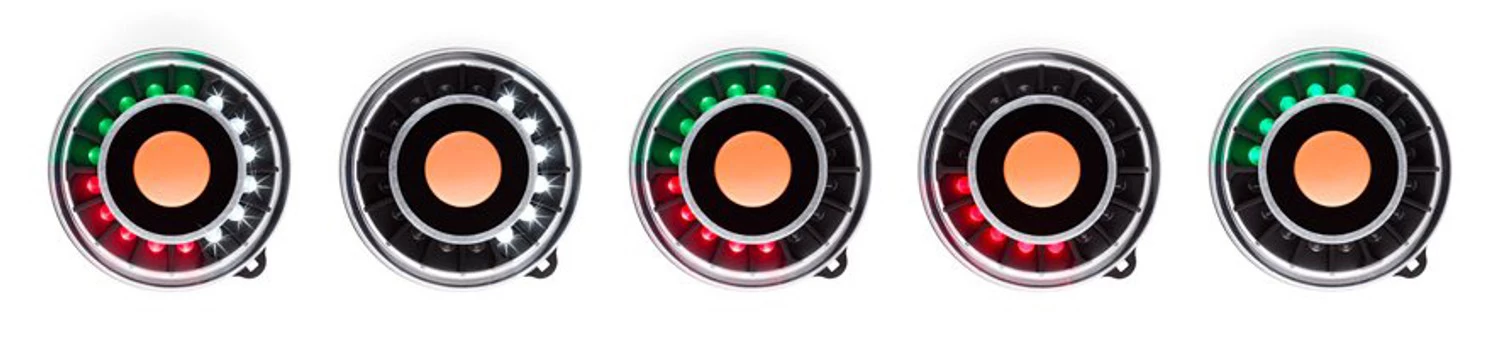

• 5 Modes: TriColor Masthead light (135°white, 112,5° red, 112,5° green), Bicolor side light, red side light, green side light, white Sternlight
• Floats light facing up
• Submersible to 20 m / 66 ft.
• Corrosion resistant
• Powered by three AAA batteries (not included)
• Size: H = 90 mm, Ø = 68 mm
• Weight (net): 109 g
• Model name: Navilight Tricolor 2NM w/Navimount base
• Model nr.: 340



Modes/approximate burn time:

• 16 green / red / white LED, 360° Tricolor lantern / 12hrs
• 10 green/red LED, 225° Bicolor sidelight / 20hrs
• 5 green or 5 red LED, 112,5° sidelight / 38hrs
• 6 white LED, 135° Sternlight / 32hrs
